Driveway Channel Drains: 2026 Guide

Every heavy rain, the same scene plays out in sloped driveways across the country: a sheet of water races down the concrete, slips under the garage door, and turns the garage — and everything stored in it — into a wading pool. A driveway channel drain, also called a trench drain, intercepts that water at the low point and carries it away before it ever reaches the threshold. It is one of the highest-value drainage upgrades a homeowner can buy, but sizing it wrong turns it into an expensive decoration. Here is how channel drains work, how to size one for your driveway, and what professional installation costs in 2026.

How Channel Drains Stop Garage Flooding

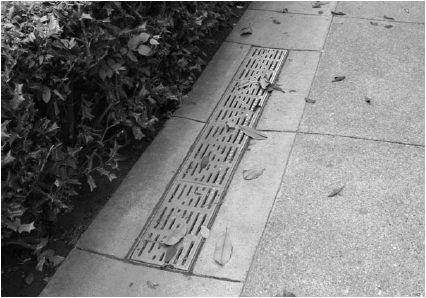

A channel drain is a linear trench, typically 4 to 12 inches wide, set flush with the driveway surface across the full width of the drive at its low point — almost always right in front of the garage door. Water flowing downhill drops into the grated channel, which slopes gently toward one or both ends, where it exits through solid pipe to daylight, a dry well, a storm drain connection, or a sump pit. The principle is interception: catch the sheet flow at the one place it cannot go around.

The alternative most homeowners try first — a deeper threshold, a rubber door seal, or regrading — rarely works on its own. Threshold ramps and seals can handle minor splashing, but a sloped driveway in a real downpour delivers hundreds of gallons per minute to the garage door line, and no seal holds back that volume. Regrading a driveway to reverse its slope is sometimes possible but often prohibitively expensive or geometrically impossible when the garage sits below street level. A channel drain accepts the slope as given and manages the water instead of fighting the topography.

Channel drains also protect more than the garage interior. By intercepting runoff at the apron, they keep water from undermining the driveway edges, eroding the landscaping beds flanking the drive, and pooling against the foundation where it can find its way into the basement. For homes where the driveway doubles as the main stormwater path for the lot, a properly sized trench system is effectively the property's first line of flood defense.

Sizing It Right: The Math That Matters

Sizing a channel drain means answering two questions: how much water arrives, and how fast the channel and its outlet can carry it away. The arrival rate depends on the driveway's surface area, its slope, and your local rainfall intensity — the same 100-year-storm figures civil engineers use, scaled to a residential lot. A 1,000-square-foot driveway in a region with 4-inch-per-hour cloudburst intensity can shed on the order of 150 to 250 gallons per minute at peak. That number surprises most homeowners, and it is why undersized drains fail.

The channel itself is rated by flow capacity, which grows with width, depth, and slope. A standard 5-inch-wide residential polymer-concrete channel at a half-percent slope typically handles around 60 to 90 gallons per minute — fine for a modest single-car drive in moderate rainfall, marginal for a wide double drive in a cloudburst zone. Stepping up to an 8-inch commercial-grade channel roughly doubles capacity. The grate matters too: heel-proof slotted or mesh grates that meet ADA-style open-area guidance keep the intake from becoming the bottleneck, and they must be rated for the vehicle load — a residential driveway needs at least a light-vehicular load class, and anything a delivery truck might cross wants a heavier rating.

But the channel is only half the system. The outlet pipe — usually 4-inch solid PVC — must carry the peak flow to its destination without backing up, which means correct slope (a quarter inch per foot minimum) and a destination with capacity to receive it. A 4-inch pipe at proper slope moves roughly 100-plus gallons per minute; a long flat run or a dry well that saturates in the first hour will throttle the whole system. This is the step DIY sizing most often gets wrong, and it is the strongest argument for having a drainage contractor or civil-minded landscaper run the numbers.

Materials and Grate Choices

Residential channel drains come in three common body materials. Polymer concrete is the workhorse: strong, chemically resistant, and dimensionally stable, available in 5-inch and 8-inch widths from multiple manufacturers. Fiberglass and HDPE channels are lighter and cheaper, perfectly adequate for passenger vehicles, but less forgiving of poor bedding — they can flex and crack if the concrete haunch around them is skimped. Cast-in-place concrete trenches are the old-school custom option, durable but slow to build and hard to get perfectly sloped by hand.

Grates are where homeowners actually interact with the system, and the choice affects looks, safety, and maintenance. Galvanized steel grates are the economical default; they work fine but will eventually rust and stain in wet climates. Stainless steel and ductile iron cost more and last far longer, with ductile iron offering the highest load ratings for drives that see heavy vehicles. Decorative options — brass-look, stone-textured, or discreet slot drains with a narrow opening — suit high-end hardscaping where a chunky industrial grate would look wrong. Whatever the finish, confirm the load class in writing: a grate crushed by a delivery truck is a safety hazard, not just an eyesore.

One detail that separates good installations from callbacks: the channel should sit in a full concrete haunch, poured around the body to lock it in place and transfer vehicle loads into the surrounding slab. Channels set in compacted gravel or thin mortar inevitably settle, rock, and crack under traffic. Ask your contractor how they bed the channel before you sign; the answer tells you most of what you need to know about the quality of the job.

Where the Water Goes: Discharge Options

A channel drain that fills a pipe to nowhere is just a very expensive puddle. The discharge destination must be planned before the first cut is made in the driveway. The best option, where the lot allows, is daylight — piping to a lower point on the property where water can sheet-flow away from all structures. Gravity is free, silent, and never clogs with anything but debris, which a cleanout handles.

Where the lot is flat or the street is the low point, a dry well or infiltration chamber buried in the yard can work if the soil percolates. A percolation test, sometimes required by the municipality, tells you whether the soil can absorb the design flow; tight clay soils that drain at a fraction of an inch per hour will overwhelm a dry well in the first big storm and send water right back. In many suburbs, the sanctioned answer is a connection to the municipal storm sewer, which requires a permit, a licensed contractor, and sometimes a tap fee — but gives the water a guaranteed destination.

The last resort is a sump pit and pump at the low end of the channel. It works, but it converts a passive gravity system into an active one with electricity, a pump, and a float switch — all the failure modes you were trying to avoid. If a pump is the only option, size it generously, give it a battery backup, and alarm it. And everywhere: keep sump and storm discharge out of the sanitary sewer unless your municipality explicitly allows it; most prohibit it, and the fines are real.

Installation: What the Job Involves

A professional installation starts with layout and permitting. The contractor marks the channel line across the driveway at the true low point — verified with a level or laser, not eyeballed — and confirms the discharge route and any required permits. Cutting comes next: a concrete saw opens a trench roughly a foot wider than the channel body on each side, and the existing slab is removed in sections. Expect noise, dust, and a driveway you cannot use for several days.

The trench is excavated to depth, a compacted gravel base goes in, and the channel sections are set to a continuous slope toward the outlet, typically a half percent or better, checked section by section. The outlet pipe is trenched to its destination at proper slope with cleanouts at bends. Then the concrete haunch is poured around the channel body, the driveway patch is poured and finished to match, and the grates are set flush — dead flush, not proud, not recessed. A grate sitting even a quarter inch high becomes a trip edge and a snow-shovel catcher; recessed, it lets water slip past.

Homeowners sometimes ask about doing this themselves. The sawing, excavation, and concrete work are within reach of a serious DIYer with rented equipment, but the sizing math, the discharge design, and any storm-sewer connection genuinely benefit from professional input. A hybrid approach works well: pay a drainage contractor for the design and the discharge work, and handle the cosmetic driveway patch yourself if you have the skills. Whatever the split, do not skip the load-class verification on the grates or the slope checks during the set.

2026 Costs and Maintenance

For a standard single-car driveway — a 12- to 16-foot channel run with a simple daylight or dry-well discharge — professional installation typically runs $2,500 to $6,000 in 2026 US pricing. A wide double driveway with an 8-inch commercial-grade channel, decorative grates, and a long discharge run to a storm connection lands more like $6,000 to $12,000, with storm-sewer tap fees and permits adding $500 to $2,000 where required. Complex jobs involving sump-pump discharge or extensive regrading can push past $15,000. Costs are 2026 US market ranges; get itemized local quotes, and make sure the quote separates the channel work from the discharge work so you can compare bids apples to apples.

Compared with the damage it prevents, the math is compelling. A single garage flooding event routinely costs $5,000 to $20,000 once you count drywall, stored contents, and mold remediation — and repeat events can trigger insurance non-renewal in flood-prone areas. A channel drain is also one of the few drainage upgrades that appraisers and buyers visibly notice; a dry garage in a neighborhood known for wet ones is a genuine selling point.

Maintenance is simple but non-negotiable. Lift the grates twice a year — spring and fall — and shovel out the leaves, grit, and sediment that accumulate in the channel; a drain that is half full of debris is half a drain. Flush the line with a garden hose, check that water exits freely at the discharge, and confirm grates sit flush and lock down. In snow country, mark the channel line so the plow or blower does not catch a grate edge. Fifteen minutes twice a year keeps a $5,000 system working like new for decades.
