Setting Expansion Tank Pressure Correctly

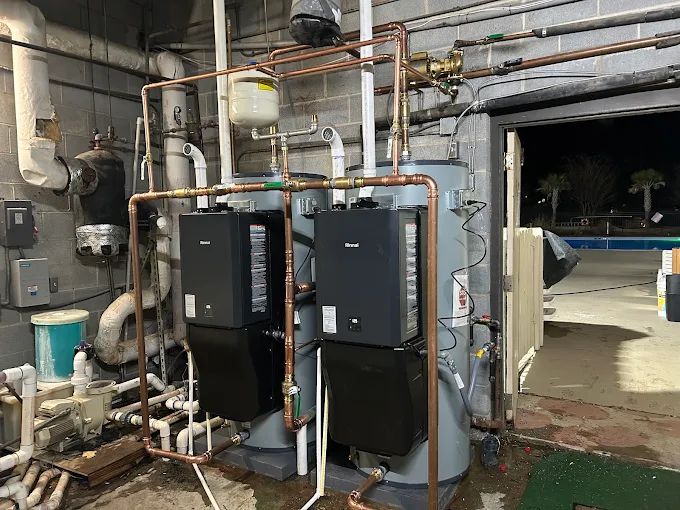

That small tank hanging above your water heater is not decoration — it is the only thing standing between normal thermal expansion and pressure spikes that weep relief valves, hammer pipes, and shorten the life of every water-using appliance in the house. Yet most expansion tanks are installed with whatever precharge they shipped with, never matched to the home's actual water pressure, which quietly defeats their purpose. Setting the precharge correctly takes twenty minutes, a tire gauge, and a bicycle pump — and it is one of the highest-value maintenance tasks in the house. This guide walks through measuring your pressure, setting precharge step by step, sizing the tank, and spotting failure before it matters.

Why Expansion Tanks Exist: Thermal Expansion in Closed Systems

Water expands when heated — about 2–3% in volume from cold to a typical 120–140°F setpoint. In an open plumbing system, that extra volume simply pushes back into the municipal main. But most modern homes have closed systems: a check valve, backflow preventer, or pressure-reducing valve (PRV) on the service line blocks backward flow. With nowhere to go, heated water spikes system pressure — often to 100–150 psi — every time the heater runs a full cycle.

The thermal expansion tank absorbs that spike: a small steel tank with a rubber bladder, pre-charged with air on one side, connected to the cold-water line near the heater. Expanding water compresses the air cushion instead of pressurizing the pipes. Without a working tank (or with one set wrong), the temperature-and-pressure (T&P) relief valve weeps or discharges to relieve pressure — which many homeowners misread as a faulty valve rather than the symptom it is.

Code requires expansion tanks on closed systems in most jurisdictions, and water-heater manufacturers typically require one to honor the warranty. If your home has a PRV or backflow preventer and no expansion tank, that is a code and warranty gap worth closing: installed cost runs $250–$600 by a licensed plumber, cheap against the appliances it protects.

Well-system owners: you already have an expansion cushion in the well pressure tank, which is why expansion tanks are primarily a municipal-water concern. But if check valves isolate the heater in its own closed loop, spikes can still occur — the 24-hour gauge test in the next section gives you a definitive answer either way.

Step 1: Measure Your Home's Water Pressure

Precharge must match static house pressure — the pressure with no fixtures running. Screw a $10–$15 water-pressure gauge onto an outdoor hose bibb or the water-heater drain valve, make sure no water is running anywhere, and read the gauge. Normal residential pressure is 40–80 psi; many PRVs are set around 50–60. If you read over 80 psi sustained, the house needs a PRV (or PRV adjustment) regardless of the expansion tank — high static pressure stresses everything.

For a truer picture, leave the gauge on for 24 hours — many gauges have a red "telltale" needle that records the peak. If static pressure is 60 psi but the telltale shows 140 after the heater runs, thermal expansion is spiking hard and the expansion tank is either missing, failed, or mis-set. That single overnight test diagnoses more than most service calls.

Note the pressure at different times if you suspect municipal supply swings: some neighborhoods see 20+ psi variation between night and day. Set precharge to the normal static pressure — the pressure the system sits at most of the time — not a momentary peak. Write the number down; every step that follows depends on it.

While the gauge is on, test a fixture or two for functional pressure: run the shower and watch how far the needle drops. A large dynamic drop (say 60 static to 35 running) suggests undersized piping, a clogged PRV screen, or a partially closed valve rather than a supply problem. Static pressure sets the precharge; dynamic behavior describes the piping — both are worth knowing.

Step 2: Setting Precharge, Step by Step

The rule is simple: precharge equals static house pressure, set with the tank at zero water pressure. Here is the procedure. First, shut off the water heater's energy (breaker or gas) and close the cold-water shutoff to the heater. Open a hot-water faucet somewhere to relieve pressure, then drain a gallon or two from the heater's drain valve until the pressure gauge reads zero — the expansion tank must see no water pressure while you set its air charge, or the reading lies.

Next, check the tank's Schrader valve (the tire-stem fitting, usually on the tank's end opposite the water connection) with an accurate tire gauge. If water comes out instead of air, stop — the bladder has failed and the tank needs replacement, not adjustment. Assuming air, add or release air with a bicycle pump or small compressor until the gauge matches your static house pressure exactly: 60 psi house pressure means 60 psi precharge.

Close the drain valve, reopen the cold-water shutoff, let the system pressurize, and relight/restart the heater. Recheck for leaks at every disturbed fitting, and leave the 24-hour gauge on once more to confirm the telltale peak now stays near static pressure instead of spiking. The whole job takes twenty minutes and no special skill — but do not skip the zero-pressure step, because setting precharge against water pressure is the single most common DIY error.

If the Schrader valve hisses air normally but will not hold the new setting overnight, the valve core itself is likely leaking — a $3 core and a valve-core tool fix it in minutes. This is the most underdiagnosed cause of chronic precharge loss. Replace the core, reset the precharge, and recheck in a week before condemning the tank.

Sizing: Is the Tank Big Enough for the Heater?

Precharge handles the pressure match; size handles the volume. The standard residential expansion tank is 2 gallons, which suits most 40–50-gallon heaters at normal pressures. Larger heaters (75–80+ gallons), high static pressure, or high temperature setpoints expand more water and may need a 4–5-gallon tank. An undersized tank still spikes — just less — because the air cushion bottoms out before absorbing the full expansion volume.

Quick sanity check: if precharge is set correctly and the T&P valve still weeps or the telltale still spikes well above static, suspect sizing (or a failed bladder) before blaming the valve. Tank sizing charts from manufacturers cross-reference heater capacity, supply pressure, and temperature rise — a plumber sizes from these in minutes, and they are worth consulting whenever a heater is upsized without changing the tank.

When replacing a heater, revisit the tank as a matter of course: match the new tank's size to the new heater's capacity, set precharge to current house pressure (which may have drifted since the old install), and replace the tank if it is over ~8–10 years old. Expansion tanks are wear items — bladders fatigue — and a new heater deserves a fresh one. A 2-gallon tank runs $40–$80; 4–5-gallon units $70–$150, plus installation.

Location matters too: the tank belongs on the cold-water supply near the heater, not on the hot side and not twenty feet away. Heat degrades the bladder faster, and distance adds lag to the cushioning effect. If a previous installer put it somewhere odd, relocating it during replacement costs little extra and works measurably better.

Failure Signs: When the Tank Is Done

Expansion tanks fail in two ways: the bladder ruptures (water crosses into the air chamber) or the air charge slowly leaks out through the Schrader valve. Symptoms of either: the T&P relief valve weeping or discharging, pressure spikes on the telltale gauge, water hammer that is new or worsening, and — the definitive test — water instead of air from the Schrader valve, or a tank that feels uniformly heavy and thuds solid when tapped all over.

The tap test works like the well-tank knock test: a healthy expansion tank sounds hollow at the air end and solid at the water end; a failed one is waterlogged throughout and noticeably heavy. Check the precharge annually — with the system depressurized, as in the setup procedure — and top up as needed. A tank that needs frequent topping has a slow leak; replace the valve core first (a $3 part), and if that does not hold, replace the tank.

Do not ignore a weeping T&P valve by capping or plugging it — that valve is the last defense against catastrophic tank rupture, and defeating it is genuinely dangerous. A weeping T&P is the system telling you pressure control has failed upstream; fix the expansion tank (or add one), and the weeping stops. If it does not, have a licensed plumber evaluate: failed PRVs and overheating thermostats are the next suspects.

Age is a legitimate replacement trigger even without dramatic symptoms: bladders fatigue around the 8–12-year mark, and a tank that has silently lost its cushion leaves the T&P valve doing daily relief work it was never meant for. If the tank’s age is unknown and the house is 15+ years old, assume it is due — the replacement cost is trivial against what it protects.

Replacement, Costs, and Pro Tips

Replacing an expansion tank is a straightforward plumber visit: isolate and drain down, unscrew the old tank (they thread onto a tee or elbow on the cold line), thread on the new one with sealant, set precharge to house pressure before pressurizing, and verify. All-in cost typically runs $250–$600 depending on access and local labor — the part itself is the cheap half of the invoice. DIY is feasible for the handy, with the usual pressurized-plumbing care.

Support the tank properly: a water-filled 4–5-gallon tank weighs 40+ pounds hanging off a threaded fitting, and unsupported tanks stress the pipe joint until it weeps or cracks. Strap larger tanks to the wall or set them on a stand per the manufacturer's instructions. Keep the tank accessible — buried behind the heater where the Schrader valve cannot be reached is an installation that guarantees the precharge will never be checked again.

Final pro tips: write the install date and precharge setting on the tank with a paint marker; recheck precharge annually alongside water-heater flushing and anode inspection; and whenever the PRV is adjusted, re-match the expansion tank precharge the same day — the two settings are a pair, and changing one without the other silently unbalances the system. Costs are 2026 US market ranges; get itemized local quotes, and use a licensed plumber for pressurized-system work.

One last check that pays off: after any plumbing work touching the main line — PRV replacement, backflow preventer install, meter swap — verify the system is still properly cushioned. Municipalities increasingly require backflow preventers at the meter, and each one quietly converts open systems to closed ones. Have the expansion-tank conversation at the same time as the preventer install, not a year later when the T&P starts weeping.
