Backup Power for Detached ADUs & Workshops

When the grid goes dark at 2 a.m., most whole-home generators do exactly what they were wired to do: the main house hums along while everything else sits silent. For a growing number of homeowners, "everything else" now includes a detached ADU housing aging parents, a paying tenant, or a home office — plus a workshop holding tens of thousands of dollars in tools, servers, or business inventory. Extending backup power beyond the main house is a fundamentally different engineering decision than backing up the house itself. It forces a choice between a second automatic transfer switch, a subpanel fed from the main generator system, or in some cases a second generator entirely. Get the strategy wrong and you either overspend on equipment you never needed, or you discover — mid-outage — that the ADU panel never made the cut.

Why Outbuildings Break Standard Generator Plans

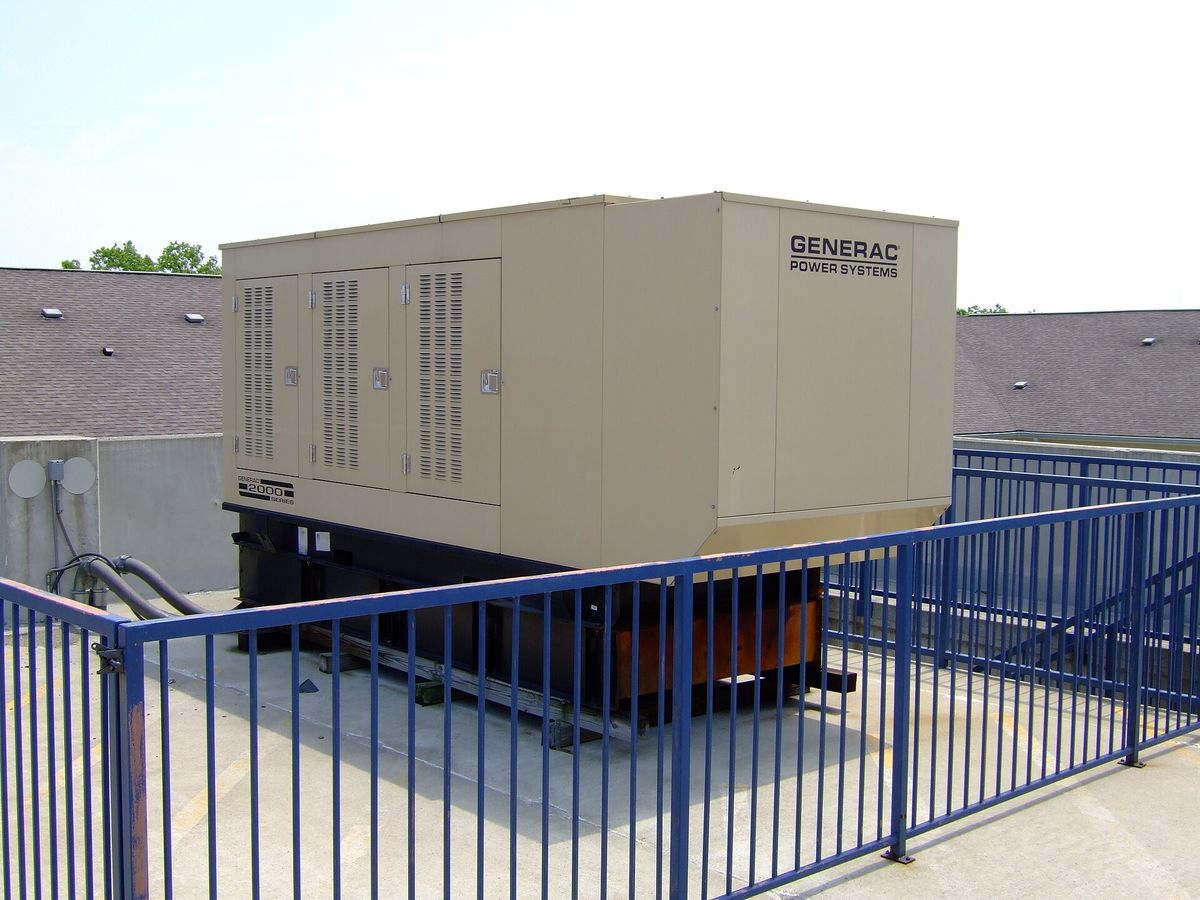

A standard standby generator installation is designed around one thing: the main service panel. The automatic transfer switch sits between the utility meter and that panel, and when utility power fails, everything downstream of the switch transfers to generator power. A detached ADU or workshop breaks that model in one of several ways. Often the outbuilding has its own meter and its own service from the utility, which means it is electrically invisible to the main house's transfer switch. In other cases the outbuilding is fed from a subpanel in the main house, which seems convenient — until you learn the feeder was sized only for the outbuilding's normal loads.

Workshops add a second complication: motor loads. Dust collectors, air compressors, welders, table saws, and kilns all have starting surges several times their running wattage, and they tend to start at the worst possible moment. A generator that comfortably runs a 4,000-square-foot house can stumble or shed loads when a 5-horsepower compressor kicks on in the shop. ADUs add a different wrinkle: they are dwellings, which means the local building department and the utility often treat them as separate occupancies with their own permitting, metering, and service rules. That matters because some jurisdictions will not allow a single transfer switch to serve two separately metered dwellings, full stop.

Distance is the third spoiler. Every foot between the generator and the load adds voltage drop on the feeder, and outbuildings routinely sit 50 to 200 feet from the main service. The fix is upsized conductors, which costs real money in copper. All of this is solvable, but it is why outbuilding backup deserves its own design conversation rather than a casual "just put the generator on the whole house" assumption.

Strategy 1: A Second Automatic Transfer Switch

The most deliberate approach is to install a second automatic transfer switch at the outbuilding, fed by the same standby generator that serves the main house. In this configuration the generator has enough capacity for both structures, and each transfer switch independently watches its own utility feed. When power fails, both buildings transfer. When power returns, both transfer back. Each switch can also be wired to back up only selected circuits — for example, the ADU's full panel but only the workshop's lighting, outlets, and mini-split, leaving the welder and the big compressor on utility-only circuits that drop during an outage.

The appeal of a second ATS is granularity. A tenant's ADU can keep full power while the workshop runs on a reduced, generator-friendly set of circuits. If the ADU has its own utility meter, this is frequently the only code-compliant way to back it up without re-metering the property. The costs are additive: in 2026, a second ATS typically runs $3,500–$7,500 installed, before trenching and feeder upsizing. Costs are 2026 US market ranges; get itemized local quotes.

There is also a capacity question that must be answered honestly. A single generator feeding two transfer switches is one generator carrying two buildings' coincident loads. If the main house draws 14 kW during an outage and the ADU draws 8 kW and the workshop's dust collector starts at 6 kW, you need a generator that handles the overlap — or load-shedding modules that drop the workshop's big motors first. Many installers address this with smart load-management modules on the outbuilding's heavy circuits, which is cheaper than upsizing the generator but requires a careful priority list. A licensed electrician should perform a real load calculation for both buildings, not a rule-of-thumb estimate, before anyone sizes equipment.

Strategy 2: Feed the Outbuilding From the Main-House System

The simpler path, when the electrical layout allows it, is to make the outbuilding part of the main house's generator-backed system. If the ADU or workshop is fed from a subpanel in the main house — with no separate utility meter — then it already sits downstream of the main transfer switch. In that case, "backing up the outbuilding" mostly means making sure the generator is sized for the combined load and that the feeder to the outbuilding can carry its share under outage conditions. No second transfer switch, no second trench for generator output wiring, no second set of controls.

This strategy shines when the outbuilding's loads are modest: an ADU with a mini-split, an induction cooktop, a heat-pump water heater, and normal lighting and outlets might add 6–10 kW of coincident load, which a 24–26 kW whole-home unit typically absorbs without drama. The work instead goes into verification: confirming the existing feeder is large enough (or replacing it), confirming the subpanel has space for any load-management modules, and confirming the generator's exercise and monitoring setup covers the larger total. The cost delta versus a main-house-only installation is often just the upsized generator — typically $2,000–$5,000 more for the next frame size — plus any feeder replacement.

Where this strategy fails is at the meter. If the ADU has its own utility service — common when it was built as a rental with separately billed power — you generally cannot legally back-feed it through the main house's generator system without consolidating the services, which the utility may resist and which changes how the tenant is billed. Workshops on separate services hit the same wall. Some homeowners solve this by converting the outbuilding to a subpanel feed during the generator project, but that is a service redesign with utility involvement, a new meter arrangement, and its own permit. It can still be the right move, but budget it as a project, not a line item.

When a Second Generator Is the Right Answer

There are properties where one generator, however large, is the wrong tool. Distance is the clearest case: when the workshop sits 250 feet from the house across a driveway, a stream, or a steep grade, the cost of trenching a properly sized feeder — plus the voltage-drop math — can exceed the cost of a second, smaller generator parked next to the building it serves. A compact 10–14 kW air-cooled unit installed at the outbuilding typically runs $8,000–$15,000 installed in 2026, and on a far-flung building that can be the cheaper and more reliable answer.

Separate businesses are another case. If the workshop is a working business — a cabinet shop, a ceramics studio with kilns on firing schedules, a server closet for a home-based company — then its outage tolerance and its load profile may have nothing in common with the house's. A dedicated generator lets the business keep its own maintenance schedule, its own fuel accounting, and its own capacity planning, without the house's loads competing during an outage. Tenants create a similar logic: a landlord who wants the ADU backed up but doesn't want the tenant's usage to threaten the main house's capacity during an extended outage may prefer the clean separation of two systems.

Redundancy is the third reason, and the most honest one. A single generator is a single point of failure; if it throws a fault code on day three of a five-day outage, both buildings go dark. Two smaller generators cost more than one large one, but each building keeps its own backup. For households where the ADU houses someone with medical equipment or where the workshop protects perishable inventory, that redundancy is worth pricing. A standby-generator dealer or a licensed electrician can model both options side by side — ask for the comparison in writing, because the "one big unit" quote and the "two smaller units" quote are rarely presented together unless you ask.

Sizing Math: The Workshop Loads That Change Everything

Residential load calculations already account for motor starting surges, but workshops concentrate them in a way houses don't. A 5-horsepower 240-volt air compressor might draw 3,700 watts running and surge past 11,000 watts on startup. A welder on a 50-amp circuit can pull 8,000–12,000 watts while the arc is struck. A 3-horsepower dust collector adds another 2,200 running watts with a startup kick. Individually these are manageable; the problem is coincidence. In a house, the air conditioner and the oven rarely start in the same second. In a shop, flipping on the dust collector while the compressor is already cycling is a normal Tuesday.

The practical method is a spreadsheet, not a guess. List every circuit in the outbuilding, note the running watts and the locked-rotor or starting watts for each motor, and mark which circuits are genuinely essential during an outage. Lighting, outlets, the mini-split, the network gear, and the ADU's full dwelling loads usually make the essential list. Welders, kilns, large compressors, and EV charging usually don't — they go on sheddable circuits that the transfer switch or load-management modules drop when the generator is near capacity. This is exactly what load-shedding modules are for, and a workshop is their ideal use case: the dust collector can wait; the freezer cannot.

ADUs deserve their own line in the calculation because they look like small houses: 1,200 square feet with electric cooking, a heat-pump water heater, a mini-split, and a washer-dryer can represent 8–12 kW of coincident load, essentially a second house on the property. If the ADU is all-electric and the main house is too, the combined service calculation can push a property from a 24 kW unit into 32–38 kW territory — or into a liquid-cooled unit, which changes the budget substantially. This is the single most common surprise in outbuilding projects, and it is why the load calculation must cover both buildings together, on one page, before equipment is ordered.

Fuel, Distance, and Trenching: The Hidden Cost Drivers

The generator itself gets the attention, but on outbuilding projects the site work often decides the budget. Trenching a new feeder or gas line across a landscaped yard typically runs $12–$30 per linear foot in 2026 depending on soil, depth requirements, and surface restoration — a 150-foot run can add $2,000–$4,500 before wire and conduit. Rocky soil, tree roots, driveways, and patios push costs up; open lawn keeps them down. Conduit must be buried to the depth your local code requires, and the feeder conductors must be upsized to hold voltage drop under roughly 3 percent at the outbuilding panel, which means more copper than a short run would need.

Fuel deserves equal attention. If the generator runs on natural gas, the gas line to a distant generator location may need upsizing all the way back to the meter, and the meter itself may need an upgrade to deliver the combined BTU load of the house and the generator at full song — a meter upgrade arranged through the gas utility that can take weeks to schedule. Propane sidesteps the utility entirely but introduces tank placement: the tank must sit at the clearances your fire code requires from buildings, property lines, and ignition sources, and a long propane run to a far generator needs proper line sizing too. Either way, fuel logistics should be settled during design, not discovered during installation.

Costs are 2026 US market ranges; get itemized local quotes. As a planning shorthand, homeowners commonly see total project costs of $18,000–$30,000 for a main-house system extended to a modest ADU via the subpanel strategy, $24,000–$40,000 when a second transfer switch, trenching, and feeder upsizing enter the picture, and $30,000–$55,000 for two-generator properties. The spread is wide because distance and site conditions dominate. A site visit from a licensed electrician who has done outbuilding work before — ask specifically for past ADU or barn projects — is worth more than any online calculator at this stage.

Permits, HOA Rules, and Hiring the Right Electrician

Outbuilding generator work touches more permits than a standard install. Expect an electrical permit for the transfer switch and panel work, and often a separate permit for trenching or for the gas or propane line. If the ADU is a permitted dwelling, the building department may require the backup design to be shown on the electrical plans, and some jurisdictions require a licensed electrician — not a handyman, not the homeowner — to perform transfer-switch work by law. The utility typically requires notification when a transfer switch is installed, and if service consolidation is involved, the utility is a party to the design from day one.

HOAs add their own layer. Many associations regulate generator placement, noise, and fuel storage, and outbuildings near property lines or visible from the street attract the most scrutiny. A detached ADU at the rear of the lot may be fine while a generator enclosure next to it is not, or vice versa. Check the CC&Rs before finalizing the equipment location, and budget for an enclosure or landscaping screen if the HOA requires it — a code-compliant generator cage or sound-attenuating enclosure typically adds $1,500–$4,000.

Choosing the installer matters more here than on a standard job. Look for a licensed electrician or a generator dealer with documented outbuilding experience, ask for two or three references from ADU, barn, or workshop projects, and insist on a written load calculation covering both buildings, a single-line diagram showing both transfer switches or the subpanel arrangement, and a trenching and restoration plan with per-foot pricing. The cheapest bid on an outbuilding project is often the one that forgot the feeder upsizing or the meter upgrade — both of which become your problem on installation day. A thorough proposal names every wire run, every permit, and every utility coordination step before work begins.
